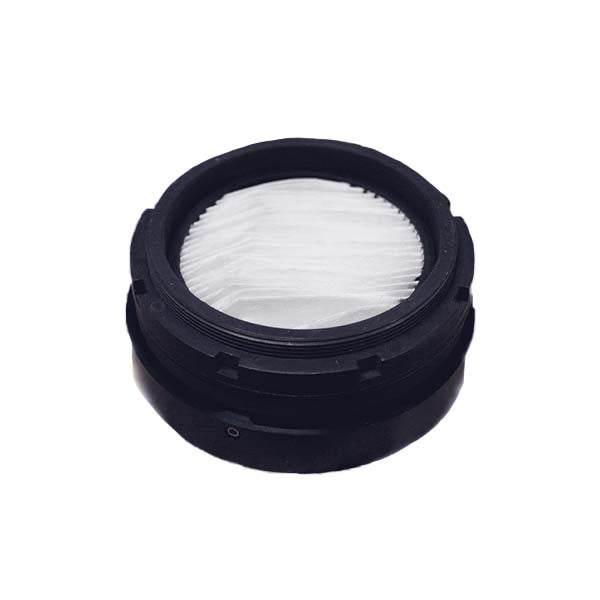

TA495VENT Filtered Vent

TA495VENT Filtered Vent - Industrial Spare Part RFQ

Brand: AGM Container Controls

Part Number / SKU: TA495VENT

Product Family: Pressure Control > Filtered Vents

This AGM Container Controls item is listed on AltraParts for industrial sourcing and RFQ-based procurement. Send your required quantity, delivery country, target lead time, and any technical requirements for quotation review.

Product Information

TA495VENT Filtered Vent SKU: TA495VENT TA495VENT Filtered Vent Categories Filtered Vents , Pressure Control Description The TA495VENT filtered vent provides a free-breathing solution to completely equalize the internal pressure of the container with the environment while providing filtration down to 25 microns. The weather shielding cover protects the 25 micron filter element from wind driven rain and dust, preventing contaminants from entering the container. Additional filter options are available (HEPA and others). Contact AGM’s Engineering Department if you require a different level of filtration. Materials and Finish: Cover, housing, and spanner nut: black anodized aluminum. Washer: conversion coated aluminum. Screws: stainless steel. Filter: polyester. O-ring: IAW MS28775 (MIL-P-25732). Mounting Requirements: Each vent is provided with a gasket, washer and spanner nut for mounting. Recommended mounting hole diameter: 4.015” - 4.030” (102.0 – 102.4 mm) Spanner nut installation torque: 100-150 in.-lbs (11.3 – 16.9 Nm) Maximum wall thickness: 0.30" (7.62 mm) Minimum wall thickness: 0.03" (.762 mm) Please contact AGM’s Engineering Department if you need a non-standard item such as an alternate material, finish, or a different level of filtration. Additional Information Mounting Hole Diameter 4.015” – 4.030” (102.0 – 102.4 mm) Spanner Nut Installation Torque 100-150 in.-lbs (11.3 – 16.9 Nm) Maximum Wall Thickness 0.30 (7.62 mm) Minimum Wall Thickness 0.03 (.762 mm) Tech Sheets Drawing

Technical Details

Mounting Hole Diameter | 4.015” – 4.030” (102.0 – 102.4 mm)
Spanner Nut Installation Torque | 100-150 in.-lbs (11.3 – 16.9 Nm)
Maximum Wall Thickness | 0.30 (7.62 mm)
Minimum Wall Thickness | 0.03 (.762 mm)
Additional Information

Technical Documents

Technical drawing, STEP file, datasheet or product document links were detected from the source page. Please verify the latest revision before ordering.

RFQ Notes

• Original brand and part number should be confirmed during quotation.
• Availability, lead time, and shipping options are confirmed after RFQ review.
• For replacement or equivalent sourcing, include photos, nameplate data, and existing part references.
