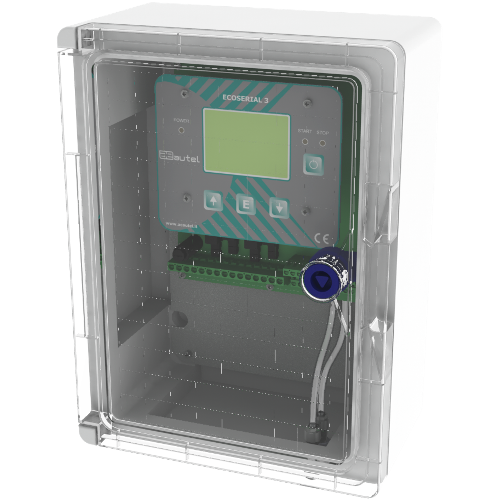

The most complete, flexible, versatile and advanced control unit for the management of large systems The Ecoserial3 is a tool created for the management of the most complex and articulated dust filtration systems. These systems usually require considerable flexibility in the management of all working parameters. The co
Technical Details
| Macro Features |
Features |
Values |
| Dimensions |
External dimensions ( L x H x W mm ) |
254x200x135 |
| Weight (kg) |
2,6 |
1" Gas |
| Protection |
Degree of Protection (standard) |
M IP55 / F IP56 |
| Temperature |
Operating temperature (°C) |
-20... +60 vers.CE (OPT -40°C), -40... +65 vers. UL |
| Power supply |
Power supply range (standard) |
90-270Vac 50-60Hz |
| Absorbed power |
10W |
24 m^3/h |
| Display |
Display Type |
LCD |
| Resolution |
128x64 |
IP65 |
| Display Colour (standard) |
yellow-green |
2 |
| Inputs |
Digital Inputs (nr) |
4 opto-isolated inputs |
| Pressure Sensor |
OK |
3 |
| Pressure Range |
0/+9999mmH2O, 0/+9999Pa, 0/+9.999kPa, 0/+99.99mBar |
2 |
| Analogue Input |
optional |
1 |
| Outputs |
Relay outputs (nr) |
4 |
| Power Relay Output |
8A/270Vac |
|
| 4-20mA output |
optional |
|
| Functions |
Cyclic Management |
OK |
| Delta Pressure Management |
OK |
|
| Jumping Valves |
OK |
|
| Remote Start/Stop |
OK |
|
| Smart |
OK |
|
| Post-cleaning |
OK |
|
| Cleaning Cycle |
OK (custom) |
|
| Coils that can be activated simultaneously per output (nr) |
128 |
|
| Broken Coil Control |
OK |
|
| Valve Breakage Control |
OK |
|
| Tank Pressure Control |
OK |
|
| Broken Sleeve Control with D.Probe |
OK (advanced) |
|
| SMS Remote Control |
OK |
|
| Serial Ports |
RS485 |
OK |
| System |
Maximum Number of Managed Drivers |
64 RPA / 16 RPC |
| Type |
MASTER |
|
| Connectable driver type |
RPA/RPC |
|
| Driver command type |
SERIAL |
|
| Cell management |
OK |
|
| Checks |
Keys (nr) |
4 |
| Application |
Type |
Big Process dust collectors |
