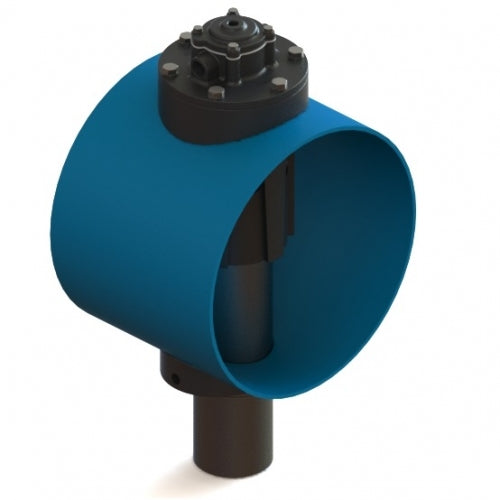

INTEGRATED FOR TANK Ø 14″ With pilot unit

SKU INTEGRATED
Price on request (RFQ)
INTEGRATED FOR TANK Ø 14″ With pilot unit
INDUSTRIAL PROCUREMENT FILE

Part Sourcing Brief

This product can be reviewed for industrial spare parts sourcing, replacement, maintenance, repair, and MRO procurement requirements.

Manufacturer / Brand AUTEL
Product Reference INTEGRATED
Request Type Industrial replacement part sourcing
Quote Review Includes Availability, lead time, alternatives, shipping

Recommended RFQ details

  • Required quantity
  • Delivery country
  • Photos, label, nameplate, or technical document if available
Start Sourcing Request

Quote, lead time, alternatives, and shipping options are confirmed after technical RFQ review.

INTEGRATED FOR TANK Ø 14″ With pilot unit

New cleaning concept

Technical Details

Features Values
Output Pipe 3"1/2
Operating pressure 1.5-8 bar
Standard Temperature Range -40 °C ; +100 °C
High Temperature Range -20 °C ; +200 °C
Weight 10 kg
Degree of protection (standard) IP65
Recommended air purity classes (ISO 8573-1) For Solids 2
For Water with T > +3°C 4
For Water with -20°C < T < +3°C 3
For Water with -40°C < T < -20°C 2
For Oil 1
No. Description Material Image
D Pilot Gruop with Coil
1 Screw M6 SS
2 Washer Grover M6 SS
3 Cover 1" Die Cast Alu
4b Spring 1" SS
5 TPU VITON ( Higt T) Small Diaphgram
6 Screw M10 SS
7 Washer Grover M10 SS
9 SPV Cover Die Cast Alu
10 O-Ring NBR
11 End Stroke NBR
12 SPV Spring
13 Piston Die Cast Alu
14 Body Valve 3"1/2 Die Cast Alu
15 Tank 14" CS/SS
16 Saddle Die Cast Alu
17 Blow Pipe 3"1/2 CS/SS
