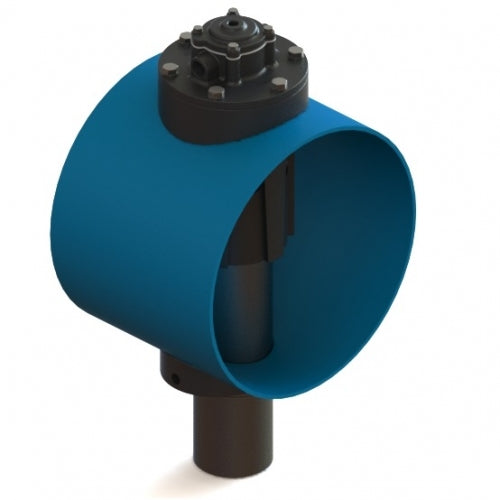

INTEGRATED VALVE 3″ Piston With Pilot Assembly

SKU INTEGRATED
Price on request (RFQ)
INTEGRATED VALVE 3″ Piston With Pilot Assembly
INDUSTRIAL PROCUREMENT FILE

Part Sourcing Brief

This product can be reviewed for industrial spare parts sourcing, replacement, maintenance, repair, and MRO procurement requirements.

Manufacturer / Brand AUTEL
Product Reference INTEGRATED
Request Type Industrial replacement part sourcing
Quote Review Includes Availability, lead time, alternatives, shipping

Recommended RFQ details

  • Required quantity
  • Delivery country
  • Photos, label, nameplate, or technical document if available
Start Sourcing Request

Quote, lead time, alternatives, and shipping options are confirmed after technical RFQ review.

INTEGRATED VALVE 3″ Piston With Pilot Assembly

New cleaning concept

Technical Details

No. Description Material Image
A Clip CS Galvanised
B Coil PA
C Connector PA + NBR
D Pilot SS + Brass
1 Screw M6 SS
2 Washer SS
3 Cover 3/4" Die Cast Alu
4 Diaphragm 3/4" TPE
5 Screw M10 SS
6 Washer SS
7 Cover 3" Die Cast Alu
8a STD Diaphragm 3" TPE
8b HT Diaphragm 3" NBR+PTFE
9 Body 3" Integrated Die Cast Alu
10 Body Pipe O'Ringg NBR
11 Body Tank O'Ring NBR
12 Clamp Tank O'Ring NBR
13 Pipe Clamp O'Ring NBR
14 Clamp 3" Die Cast Alu
15 Washer 3" Pa + Ela
16 Blow Pipe 3" CS or SS
Features Values
Operating pressure Max 8 Bar
Tank capacity 57.3 L/m
Temperature Range PED Iron -20°C ; +70°C
Temperature Range PED Inox -40°C ; +100°C
Standard Colour for Iron Tank RAL 5012
No. Description Material Image
1 Pilot Gruop with Coil
2 Screw M6 SS
3 Washer Grover M SS
4 Cover 1" Die Cast Alu
5 Spring 1" SS
6 TPU VITON ( Higt T) Small Diaphgram
7 Screw M10 SS
8 Washer Grover M10 SS
9 SPV Cover Die Cast Alu
10 O-Ring NBR
11 End Stroke NBR
12 SPV Spring SS
13 Piston Die Cast Alu
14 Body Valve 3" Die Cast Alu
15 Tank 12" CS/SS
16 Saddle Die Cast Alu
17 Blow Pipe 3" CS/SS
