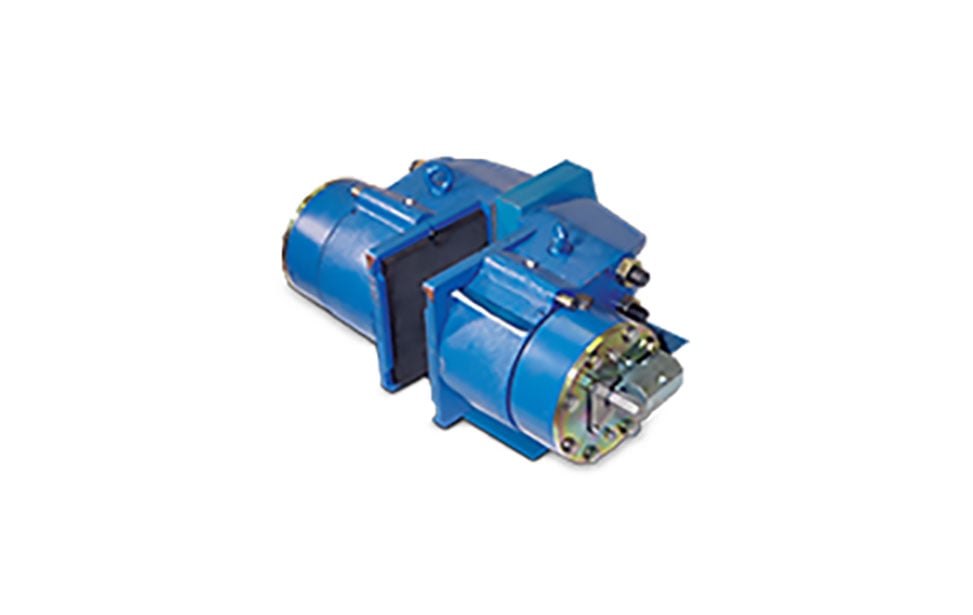

Twiflex VKHD Series Direct Acting Caliper - Industrial Spare Part RFQ
Twiflex VKHD Series Direct Acting Caliper is listed on AltraParts for professional industrial spare parts sourcing, technical review and quotation. This RFQ product page helps buyers request availability, compatible supply options and export-ready delivery for industrial brakes & calipers.
Product Information
-
Brand: Twiflex
-
Model / Reference: VKHD
-
Product Group: Industrial Brakes & Calipers
-
Configuration: Direct Acting Caliper
-
Supply Type: Request for Quote / Industrial Sourcing
-
Delivery: Availability, lead time and shipping options are confirmed after RFQ review.
Overview
VKHD Series The Twiflex VKHD disc brake caliper is comprised of two halves, or hydraulic modules, and is suitable for use with a minimum disc thickness of 20mm. The modules are mounted each side of a central mounting plate 12mm thicker than the brake disc. Minimum disc diameter is 1000mm.
Normally one or two calipers are used per disc, but the number may be increased depending on disc size. The brakes may be positioned at any angle around the periphery of the disc, but should ideally be mounted horizontally (i.e. at the 3 o’clock or 9 o’clock position). A range of brake discs is available from Twiflex (see Disc and Hub Assemblies).
The ratings shown on the graph are based on fully bedded in and conditioned brake pads with a nominal friction coefficient μ = 0.4. Twiflex disc brakes must be used with Twiflex asbestos free brake pads.
Effective disc radius = actual radius (m) – 0.095m. Literature Twiflex Line Card DB2019 - VKHD Disc Brake Caliper P-1648-TF - Industrial Disc Brakes Catalog
The Twiflex VKHD disc brake caliper is comprised of two halves, or hydraulic modules, and is suitable for use with a minimum disc thickness of 20mm. The modules are mounted each side of a central mounting plate 12mm thicker than the brake disc. Minimum disc diameter is 1000mm.
Effective disc radius = actual radius (m) – 0.095m.
Request a Quote
Send us the brand, part number, quantity, machine/application details and delivery country. Our team will review the request and respond with a quotation.
