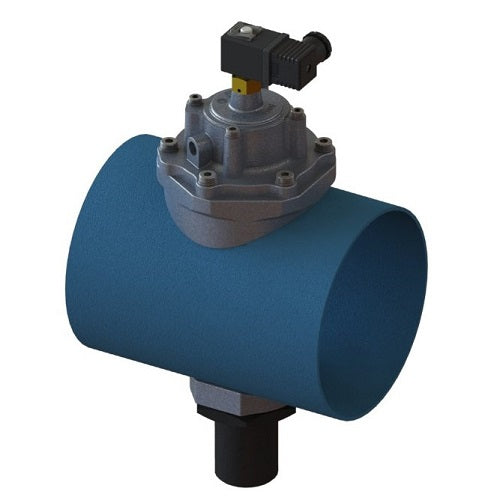

• 1" ½ DOUBLE STAGE VALVE With Pilot Assembly

AUTEL

1" ½ DOUBLE STAGE VALVE With Pilot Assembly

SKU DOUBLE
Price on request (RFQ)
30-day return policy EU: 14-day right of withdrawal info@altraparts.com RFQ by email with files
Why is there no price on this page? Price and lead time for this reference depend on quantity, delivery country and the supplier stock reviewed at that moment, so a fixed list price would be misleading. Send the reference and quantity — availability, compatible alternatives, lead time and shipping options are confirmed in writing after RFQ review.
E-mail the sourcing desk
info@altraparts.com Send by e-mail

Reply in writing, usually within hours. Attach the label photo, quantity and delivery country.

INDUSTRIAL PROCUREMENT FILE

Part Sourcing Brief

This item can be reviewed for industrial spare parts sourcing, replacement, maintenance, repair, and MRO procurement requirements.

Manufacturer / Brand AUTEL
Product Reference DOUBLE
Request Type Industrial replacement part sourcing
Quote Review Includes Availability, lead time, alternatives, shipping

Recommended RFQ details

  • Required quantity
  • Delivery country
  • Photos, label, nameplate, or technical document if available
Start Sourcing Request

Quote, lead time, alternatives, and shipping options are confirmed after technical RFQ review.

1" ½ DOUBLE STAGE VALVE With Pilot Assembly

Our most popular solution with tank-integrated valve, easy installation and high cleaning performance

Technical Details

Features Values
Output Pipe 1"1/2
Operating pressure 1.5-8 bar
Standard Temperature Range -40 °C ; +100 °C
High Temperature Range -20 °C ; +200 °C
Kv 60 m^3/h
Weight 1.9-2.8 kg
Degree of protection (standard) IP65
Recommended air purity classes (ISO 8573-1) For Solids 2
For Water with T > +3°C 4
For Water with -20°C < T < +3°C 3
For Water with -40°C < T < -20°C 2
For Oil 1
Features Values
Operating pressure Max 8 Bar
Tank capacity 35 L/m
Temperature Range PED Iron -20°C ; +70°C
Temperature Range PED Inox -40°C ; +100°C
Standard Colour for Iron Tank RAL 5012
No. Description Material Image
1 Screw M6 SS
2 Washer SS
3 Cover 1" Die Cast Alu
4a STD Diaphragm 1 " TPE
4b HT Diaphragm 1" Kit NBR+PTFE
5 Body 1" Integrated Die Cast Alu
6 Body Pipe O'Ring NBR
7 Body Tank O' Ring NBR
8 Clamp Tank O'Ring NBR
9 Clamp 1" Die Cast Alu
10 Pipe Clamp O'Ring NBR
11 Washer 1" Pa 6.6+ Ela
12 Blow Pipe 1" CS or SS
E Optional Fitting Nickel-plated Brass
