Desiccant Reactivator Unit

Desiccant Reactivator Unit - Industrial Spare Part RFQ

Brand: AGM Container Controls

Part Number / SKU: BL/E1005/03

Product Family: Moisture Control > Bulk Desiccant

This AGM Container Controls item is listed on AltraParts for industrial sourcing and RFQ-based procurement. Send your required quantity, delivery country, target lead time, and any technical requirements for quotation review.

Product Information

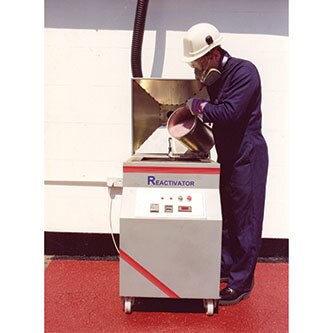

Desiccant Reactivator Unit SKU: BL/E1005/03 Desiccant Reactivator Unit Categories Bulk Desiccant , Moisture Control Description The Series 2 Desiccant Reactivator Unit is a device specifically designed for the regeneration of saturated silica gel. Simplicity and efficient operation are the key features of the Series 2 Desiccant Reactivator Unit with its ability to process up to 55 lbs. (25 kg) of saturated silica gel in one cycle. Desiccant Reactivator Units may also be used to regenerate saturated indicating silica gel. The Series 2 Desiccant Reactivator Unit is operated from a standard main electricity outlet to power the three kilowatt heaters. Forced air circulation ensures that the evaporating moisture is transported away from the desiccant. The temperature monitoring and control instruments of the Series 2 Desiccant Reactivator Unit are a unique feature and provide precise reactivation management to ensure maximum reactivation efficiency. The input reactivation temperature control is user settable and includes a constant readout of the inlet temperature. An accurately located output temperature monitor indicates the progress of the reactivation process through the desiccant bed. When the output temperature nears the inlet temperature, effective reactivation is complete. The Series 2 Desiccant Reactivator Unit is mounted on wheeled casters for easy placement in a workshop or on-site. The inner desiccant holder is removable for emptying and loading the silica gel. The Series 2 Desiccant Reactivator Unit, when fully loaded with saturated silica gel, drives off more than 4,500 cubic centimeters (4.5 liters) of water vapor during a processing time of six hours. Maximum Silica Gel Capacity 55 lbs. (25 kg) Electrical Supply 240 volts, 60 Hz, 3 kilowatts Maximum Reactivation Unit 221°F (105°C) Reactivation Air Flow (Typical) 7 CFM (200 liters/minute) Elapsed Time Indicator Event and total hours run Color & Construction Gray painted mild steel Weight 165 lbs. (75 kg) Dimensions 41.5 in. (1,055 mm) high 20 in. (508 mm) deep 26 in. (660 mm) wide FREQUENTLY ASKED QUESTIONS How does the reactivation work? As a general rule, saturated desiccant will require a minimum of 4-6 hours at a temperature of between 221°F to 266°F (105°C to 130°C) throughout the entire desiccant bed for the reactivation process to be effective and reduce the adsorbed moisture to less than 2% by weight. The recommended reactivation temperature for Blue to Pink silica gel is max. 266°F (130°C) and the recommended reactivation temperature for Orange to Green silica gel is max. 221°F (105°C). The actual maximum temperature that the oven will reach is approximately 275°F (135°C) even though the temperature dial on the unit shows a range of 32°F to 392°F (0°C to 200°C). CAUTION : Some desiccants are seriously damaged and can release toxic chemicals if overheated. Reactivation should be carried out in a ventilated electric oven. A sealed oven will limit the moisture liberated and prevent efficient reactivation. Gas ovens and microwave cookers are also not suitable for reactivation. Ideally, after reactivation the desiccant must be placed in a sealed container and allowed to cool. The reactivated desiccant should not be stored in a warm oven at 140°F (60°C) as this may allow partial saturation of the desiccant although the activity indicator may indicate the desiccant is active. The Reactivator Unit is able to reactivate up to 55 lbs. (25 kg) of saturated silica gel using a sta

Technical Details

Maximum Silica Gel Capacity | 55 lbs. (25 kg)
Electrical Supply | 240 volts, 60 Hz, 3 kilowatts
Maximum Reactivation Unit | 221°F (105°C)
Reactivation Air Flow (Typical) | 7 CFM (200 liters/minute)
Elapsed Time Indicator | Event and total hours run
Color & Construction | Gray painted mild steel
Weight | 165 lbs. (75 kg)
Dimensions | 41.5 in. (1,055 mm) high 20 in. (508 mm) deep 26 in. (660 mm) wide
Voltage | 240 Volt
Additional Information

RFQ Notes

• Original brand and part number should be confirmed during quotation.
• Availability, lead time, and shipping options are confirmed after RFQ review.
• For replacement or equivalent sourcing, include photos, nameplate data, and existing part references.
