Drum Vent Dryers

Drum Vent Dryers - Industrial Spare Part RFQ

Brand: AGM Container Controls

Part Number / SKU: DrumVentDryer

Product Family: Moisture Control > Desiccant Breathers

This AGM Container Controls item is listed on AltraParts for industrial sourcing and RFQ-based procurement. Send your required quantity, delivery country, target lead time, and any technical requirements for quotation review.

Product Information

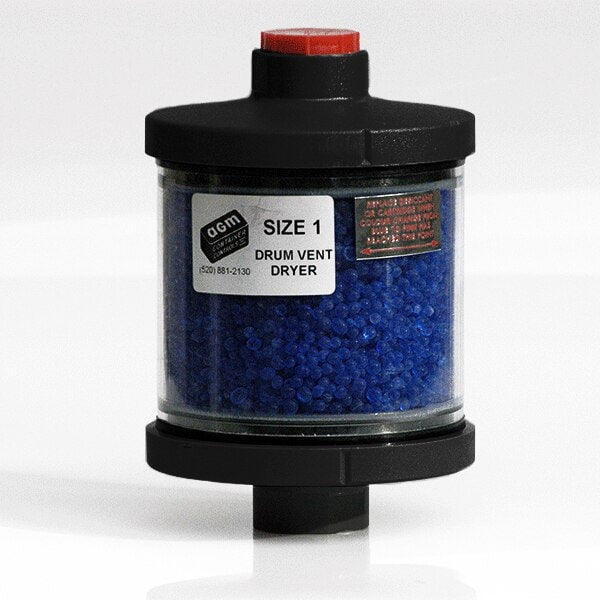

Drum Vent Dryers SKU: DrumVentDryer Drum Vent Dryers Categories Desiccant Breathers , Moisture Control Description Drum Desiccant Breathers, also known as Drum Vent Dryers, prevent contamination of chemical products (powders, liquids and semi-solids) in 55-gallon drums during storage and use. AGM’s Drum Vent Dryers are quick and easy to install. The units are reusable — saturated color change silica gel desiccant is easily replaced. Drum Desiccant Breathers can also be filled with orange silica gel (acceptable for use in the European Union), molecular sieve , activated alumina and activated carbon. Selection Guide Std. Duty Industrial Heavy Duty Industrial Std. Duty Ultra Clean Heavy Duty Ultra Clean Part No. BL/D7870/01 BL/D7870/02 BL/D7548/01 BL/D7548/02 Desiccant Charge 1.32 lbs. 2.65 lbs. 1.32 lbs. 2.65 lbs. Adsorption Capacity 3.17 oz. H 2 O 6.35 oz. H 2 O 2.12 oz. H 2 O 4.23 oz. H 2 O Air Drying Capacity 211.9 ft 3 423.8 ft 3 141.3 ft 3 282.5 ft 3 Maximum Flow Rate 1.06 ft 3 /minute at 50 microns nominal 1.06 ft 3 /minute at 0.5 microns nominal Operating Temperature -4°F to 131°F (-20°C to 55°C) -40°F to 176°F (-40°C to 80°C) Housing Materials UV Resistant Polycarbonate & PVC UV Resistant Polycarbonate Mounting Thread 3/4" NPSM (Includes 3/4-14 NPT adapter to connect Drum Desiccant Breather to drum) Also fits 2" NPT adapter. NOTE: Standard Duty versions have a nominal filtration rating of 25 microns while the Ultra Clean versions have a nominal filtration rating of 0.5 microns, suitable to protect against atmospheric particulate contaminants. Additional Information Dryer Type Heavy Duty – Industrial, Heavy Duty – Ultra Clean, Standard Duty – Industrial, Standard Duty – Ultra Clean Desiccant Type Silica Gel Tech Sheets Drawing - BL/D7870 Drawing - BL/D7548 Installation Guide Air Flow Animation

Technical Details

Dryer Type | Choose an option Heavy Duty - Industrial Heavy Duty - Ultra Clean Standard Duty - Industrial Standard Duty - Ultra Clean Clear
Selection Guide | Std. Duty Industrial | Heavy Duty Industrial | Std. Duty Ultra Clean | Heavy Duty Ultra Clean
Part No. | BL/D7870/01 | BL/D7870/02 | BL/D7548/01 | BL/D7548/02
Desiccant Charge | 1.32 lbs. | 2.65 lbs. | 1.32 lbs. | 2.65 lbs.
Adsorption Capacity | 3.17 oz. H 2 O | 6.35 oz. H 2 O | 2.12 oz. H 2 O | 4.23 oz. H 2 O
Air Drying Capacity | 211.9 ft 3 | 423.8 ft 3 | 141.3 ft 3 | 282.5 ft 3
Maximum Flow Rate | 1.06 ft 3 /minute at 50 microns nominal | 1.06 ft 3 /minute at 0.5 microns nominal
Operating Temperature | -4°F to 131°F (-20°C to 55°C) | -40°F to 176°F (-40°C to 80°C)
Housing Materials | UV Resistant Polycarbonate & PVC | UV Resistant Polycarbonate
Mounting Thread | 3/4" NPSM (Includes 3/4-14 NPT adapter to connect Drum Desiccant Breather to drum) Also fits 2" NPT adapter.
Dryer Type | Heavy Duty – Industrial, Heavy Duty – Ultra Clean, Standard Duty – Industrial, Standard Duty – Ultra Clean
Desiccant Type | Silica Gel
