Standard Tie Down Shelving

Standard Tie Down Shelving - Industrial Spare Part RFQ

Brand: AGM Container Controls

Part Number / SKU: standard-shelving

Product Family: Shelving & Straps > Tie Down Shelving

This AGM Container Controls item is listed on AltraParts for industrial sourcing and RFQ-based procurement. Send your required quantity, delivery country, target lead time, and any technical requirements for quotation review.

Product Information

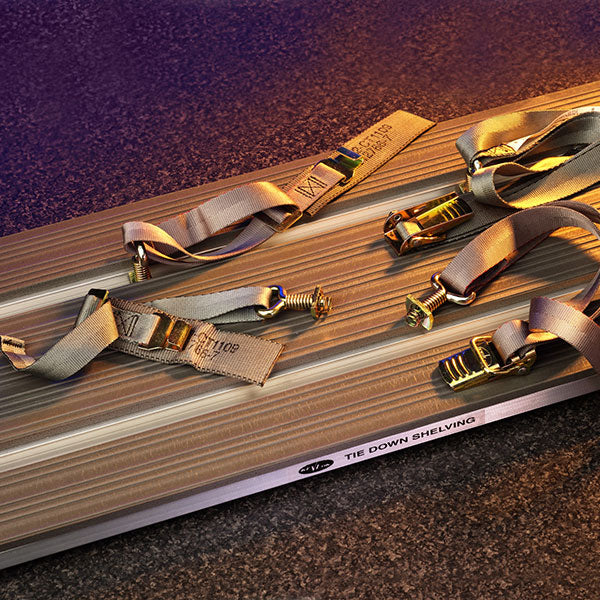

Standard Tie Down Shelving SKU: standard-shelving Standard Tie Down Shelving Categories Shelving & Straps , Tie Down Shelving Description Standard Tie Down Shelving consists of two or more six-inch wide aluminum extrusions in lengths up to eight feet, that are covered with rugged vinyl padding and mounted on brackets cantilevered and bolted to bulkheads. Each extrusion contains a recessed track into which the end fitting of a tie down strap is inserted. The following optional accessories are available for Standard Tie Down Shelving: Writing Surfaces Pull-Out Keyboard Trays File Trays Bookends Corner Units Weight Calculations Weight calculations for shelving Weight of padded, aluminum shelf = L" x W" x .028 lbs. Short brace and bracket = 1.04 lbs. Long brace = 1.25 to 2.00 lbs. CT1109 strap assembly = 0.52 lbs. each Writing Surfaces * 18" x 72" with 2 trays = 64 lbs. 13" x 72" with 2 trays = 60 lbs. 18" x 36" with 1 tray = 33 lbs. 13" x 36" with 1 tray = 31 lbs. *Examples of weight, listed above, are of writing surfaces and trays only and do not include the weight of the shelves or mounting braces and brackets. Ordering Information Use this link to see our Tie Down Shelving Drawings . Length in inches to the nearest .25 inch (± .10 inch). Lengths are produced according to customer specifications up to 144 inches. Nominal width: 12, 18 or 24 inches (* actual width 12.20, 18.30 or 24.40 inches). Larger widths available. Must be in increments of 6 inches (6.1 inches). CONFIG- URATION 1 PADDED SHELF 2 BRACKETS 3 END CAPS 4 STIFFENERS 5 BRACES 24" SHELF 6 STRAP ASSY'S 7 PLASTIC END CAPS 8 WRITING SURFACE 18" 9 WRITING SURFACE 13" 10 KEYBOARD TRAY A X X X X X X B X X X X X C X X X D X X E X X F X G X X X H X X W X X X X X X X X WN X X X X X X X X EXAMPLE: KC18-4850 (18.30 inch wide 48.50 ± .10 inch long shelf with END CAPS and 4 STRAPS, but no BRACKETS or STIFFENERS). If your application requires additional STIFFENERS, BRACKETS, STRAPS or special design, please contact AGM . STIFFENERS and additional BRACKETS added for lengths over 36 inches and for every additional 36 inches or increment thereof. A minimum of two STRAPS supplied, one additional STRAP supplied for each foot of shelving or increment thereof over 24 inches in length. Straps adjust from 11 to 60 inches. PLASTIC END CAPS are used in lieu of item 3 on G & H configurations to conceal exposed ends. Complete kit ("A" configuration) comes with all hardware shown above (plus braces for 24.40" widths). Available in 12.20", 18.30" and 24.40" widths and in lengths up to 144.00". For other sizes, contact AGM .

Technical Details

CONFIG- URATION | 1 PADDED SHELF | 2 BRACKETS | 3 END CAPS | 4 STIFFENERS | 5 BRACES 24" SHELF | 6 STRAP ASSY'S | 7 PLASTIC END CAPS | 8 WRITING SURFACE 18" | 9 WRITING SURFACE 13" | 10 KEYBOARD TRAY
A | X | X | X | X | X | X
B | X | X | X | X | X
C | X | X | X
D | X | X
E | X | X
F | X
G | X | X | X
H | X | X
W | X | X | X | X | X | X | X | X
WN | X | X | X | X | X | X | X | X
