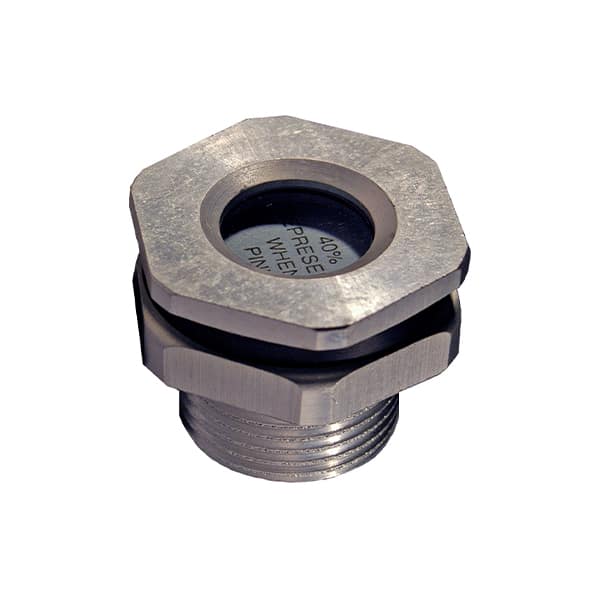

TA354 Humidity Indicator Plug - Industrial Spare Part RFQ
Brand: AGM Container Controls
Part Number / SKU: TA354
Product Family: Humidity Monitoring > Humidity Indicator Plugs and Sensors
This AGM Container Controls item is listed on AltraParts for industrial sourcing and RFQ-based procurement.
Send your required quantity, delivery country, target lead time, and any technical requirements for quotation review.
Product Information
TA354 Humidity Indicator Plug SKU: TA354 (specify card type) TA354 Humidity Indicator Plug Categories Humidity Indicator Plugs and Sensors , Humidity Monitoring Description Meets SAE AS26860 Type II This is a clear anodized aluminum Humidity Indicator Plug, but 1/2″ longer than the TA356. This item is intended for thicker walls than the TA356 (TA356 can fit up to a .23″ wall), up to .75″ in thickness. It installs into a flexible barrier through a 1.05 in. (26 mm) diameter hole. Nut and two gaskets are furnished. It can also be installed through a 1.05 in. (26 mm) diameter hole in a rigid container by removing one gasket and reversing the nut. Standard TA354-40 is furnished with a 40% humidity disc. For optional multiple spot discs, refer to the chart below. Suffix numbers specify optional discs. For instance, TA354-234P includes a 20-30-40% pie sector disc. Circle Card Part Number Standard Item Indicated Humidity Percentage Segment Type TA356-HC-2345S No 20, 30, 40, 50 Spot TA356-HC-2345P Yes 20, 30, 40, 50 Pie TA356-HC-345S No 30, 40, 50 Spot TA356-HC-123P Yes 10, 20, 30 Pie TA356-HC-234P Yes 20, 30, 40 Pie TA356-HC-345P Yes 30, 40, 50 Pie TA356-HC-3456P Yes 30, 40, 50, 60 Pie TA356-HC-246P Yes 20, 40, 60 Pie TA356-HC-456P Yes 40, 50, 60 Pie TA356-HC-40 Yes 40 Spot Weight: 0.06 lbs. (27 grams) Maximum Internal Pressure: 10 psi Recommended Installation Torque: 30 - 40 in. - lbs. (3.4 - 4.5 N·m) Maximum wall thickness: 0.67 in. (17 mm) Additional Information Maximum Internal Pressure 10 psi Window Diameter 0.675 in (17.1 mm) Body Finish Anodized, Clear Mounting Hole Diameter 1.05 in (26 mm) Weight 0.06 lbs (27 grams) Internal O-Ring Material IAW MIL-PRF-6855 Maximum Wall Thickness 0.67 in (17 mm) Complies With SAE AS26860 Type II Body Material Aluminum Recommended Installation Torque 30 – 40 in. – lbs. (3.4 – 4.5 N·m) External Gasket Material IAW MIL-PRF-6855 Indicated Humidity Percentage 20%, 30%, 40%, 50%, 10%, 20%, 30%, 20%, 30%, 40%, 30%, 40%, 50%, 30%, 40%, 50%, 60%, 20%, 40%, 60%, 40%, 50%, 60%, 40% Segment Type Pie, Spot Tech Sheets Product Sheet TA354 Step File HI Card Replacement Instructions
Technical Details
Indicated Humidity Percentage | Choose an option 20%, 30%, 40%, 50% 10%, 20%, 30% 20%, 30%, 40% 30%, 40%, 50% 30%, 40%, 50%, 60% 20%, 40%, 60% 40%, 50%, 60% 40%
Segment Type | Choose an option Pie Spot Clear
Circle Card Part Number | Standard Item | Indicated Humidity Percentage | Segment Type
TA356-HC-2345S | No | 20, 30, 40, 50 | Spot
TA356-HC-2345P | Yes | 20, 30, 40, 50 | Pie
TA356-HC-345S | No | 30, 40, 50 | Spot
TA356-HC-123P | Yes | 10, 20, 30 | Pie
TA356-HC-234P | Yes | 20, 30, 40 | Pie
TA356-HC-345P | Yes | 30, 40, 50 | Pie
TA356-HC-3456P | Yes | 30, 40, 50, 60 | Pie
TA356-HC-246P | Yes | 20, 40, 60 | Pie
TA356-HC-456P | Yes | 40, 50, 60 | Pie
TA356-HC-40 | Yes | 40 | Spot
Maximum Internal Pressure | 10 psi
Window Diameter | 0.675 in (17.1 mm)
Body Finish | Anodized, Clear
Mounting Hole Diameter | 1.05 in (26 mm)
Weight | 0.06 lbs (27 grams)
Internal O-Ring Material | IAW MIL-PRF-6855
Maximum Wall Thickness | 0.67 in (17 mm)
Complies With | SAE AS26860 Type II
Body Material | Aluminum
Recommended Installation Torque | 30 – 40 in. – lbs. (3.4 – 4.5 N·m)
External Gasket Material | IAW MIL-PRF-6855
Indicated Humidity Percentage | 20%, 30%, 40%, 50%, 10%, 20%, 30%, 20%, 30%, 40%, 30%, 40%, 50%, 30%, 40%, 50%, 60%, 20%, 40%, 60%, 40%, 50%, 60%, 40%
Segment Type | Pie, Spot
Additional Information
Technical Documents
Technical drawing, STEP file, datasheet or product document links were detected from the source page. Please verify the latest revision before ordering.
RFQ Notes
- Original brand and part number should be confirmed during quotation.
- Availability, lead time, and shipping options are confirmed after RFQ review.
- For replacement or equivalent sourcing, include photos, nameplate data, and existing part references.
