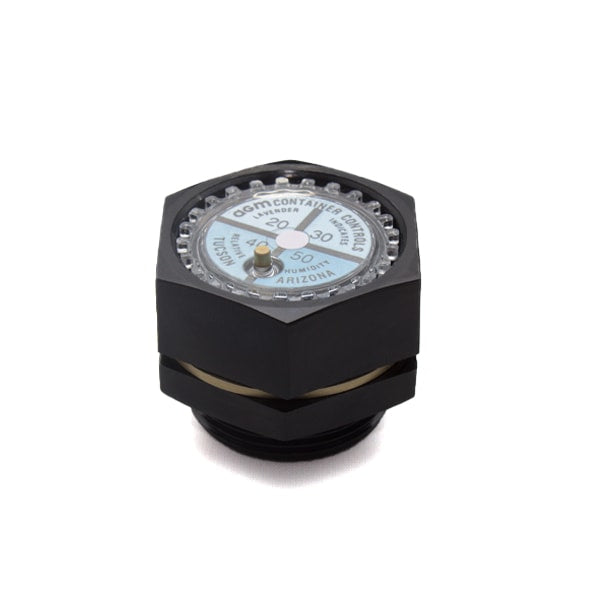

Humi-Valve® TA440-R - Industrial Spare Part RFQ
Brand: AGM Container Controls
Part Number / SKU: TA440-R
Product Family: Pressure Control > Breather Valves > Humidity Indicating Valves
This AGM Container Controls item is listed on AltraParts for industrial sourcing and RFQ-based procurement.
Send your required quantity, delivery country, target lead time, and any technical requirements for quotation review.
Product Information
Humi-Valve® TA440-R SKU: TA440-R Humi-Valve® TA440-R Categories Breather Valves , Humidity Indicating Valves , Pressure Control Description The TA440-R HUMI-VALVE ® incorporates a Humidity Indicator and a two-way Breather Valve all in the same housing, thereby saving the cost of an additional hole in the case. The valve has separate and distinct settings for both pressure and vacuum relief. It has a flow rate of 4.0 SCFM at 1.5 psi above the valve setting. Standard settings are from 0.5 psid to 3.0 psid reseal pressure. The lower the setting, the higher the flow rate, making this valve suitable for transit cases and similar applications up to 33 cubic feet in volume. There is a separate path to the Humidity Indicator. The TA440-R Breather Valve is lightweight, rugged, tamper-proof and requires no field maintenance. Corrosion- resistant materials are used throughout. The valve seal is made of silicone rubber. A manual release push button is standard on all TA440-R Breather Valves. It is used to equalize residual pressure or vacuum differentials in order to make opening the container easier. A gasket, washer and hex nut are provided with each valve. Materials Body & Hex Nut - Black Polycarbonate Plastic; Washer - Aluminum Alloy Materials (Cont.) Humidity Indicator Housing - High Strength Plastic; Gasket - per AMS-R-6855, Class II, Grade 60 Mounting Requirements Gasket, nut & washer, provided with each valve* Mounting Hole Diameter 1.265 ± 0.015 (32 ± 0.3 mm) Installation Torque 30-40 in. - lbs. (3.4-4.5 N•m) Maximum Wall Thickness 0.38 (10 mm) Weight 0.09 lbs. (40 grams) *For threaded boss installation: 1.250-16 UN-2B; no counterbore requirement Contact AGM's Engineering department for information on NEMA and IP ratings. PRESSURE SIDE (FLOW OUT) VACUUM SIDE (FLOW IN) Dash No. Sealed @ Flow Rate @ Pressure Dash No. Sealed @ Flow Rate @ Pressure -05 0.5 psid* 4.0 SCFM @ 2.0 psid -05 0.5 psid* 4.0 SCFM @ 2.0 psid -10 1.0 psid* 4.0 SCFM @ 2.5 psid -10 1.0 psid* 4.0 SCFM @ 2.5 psid -15 1.5 psid* 3.5 SCFM @ 3.0 psid -15 1.5 psid* 3.5 SCFM @ 3.0 psid -20 2.0 psid* 3.0 SCFM @ 3.5 psid -20 2.0 psid* 3.0 SCFM @ 3.5 psid -25 2.5 psid* 2.5 SCFM @ 4.0 psid -25 2.5 psid* 2.5 SCFM @ 4.0 psid -30 3.0 psid* 2.0 SCFM @ 4.5 psid -30 3.0 psid* 2.0 SCFM @ 4.5 psid *To convert to metric equivalent (millibars) multiply by 69 †To convert metric equivalent (liters/sec) multiply by 0.472 Dash numbers for the Pressure and Vacuum sides may be used in any combination (i.e. TA440-05-15-R). AGM can also supply TA440-R Valves with other settings than those shown above. Please contact AGM for availability. Before making drawings of these valves, contact AGM for part numbers to be used. Additional Information Materials Body & Hex Nut-Black Polycarbonate Plastic, Washer-Aluminum Alloy, Humidity Indicator Housing-High Strength Plastic, Gasket-per AMS-R-6855, Class II, Grade 60 Mounting Requirements Gasket, Washer, Hex Nut are provided with each valve Mounting Hole Diameter 1.265 ± 0.015 (32 ± 0.3 mm) Maximum Wall Thickness 0.38 in. (10 mm) Installation Torque 30-40in. – lbs. (3.4-4.5 Nm) Weight 0.09 lbs. (40 grams) Tech Sheets TA440-R Step File
Technical Details
Materials | Body & Hex Nut - Black Polycarbonate Plastic; Washer - Aluminum Alloy
Materials (Cont.) | Humidity Indicator Housing - High Strength Plastic; Gasket - per AMS-R-6855, Class II, Grade 60
Mounting Requirements | Gasket, nut & washer, provided with each valve*
Mounting Hole Diameter | 1.265 ± 0.015 (32 ± 0.3 mm)
Installation Torque | 30-40 in. - lbs. (3.4-4.5 N•m)
Maximum Wall Thickness | 0.38 (10 mm)
Weight | 0.09 lbs. (40 grams)
PRESSURE SIDE (FLOW OUT) | VACUUM SIDE (FLOW IN)
Dash No. | Sealed @ | Flow Rate @ Pressure | Dash No. | Sealed @ | Flow Rate @ Pressure
-05 | 0.5 psid* | 4.0 SCFM @ 2.0 psid | -05 | 0.5 psid* | 4.0 SCFM @ 2.0 psid
-10 | 1.0 psid* | 4.0 SCFM @ 2.5 psid | -10 | 1.0 psid* | 4.0 SCFM @ 2.5 psid
-15 | 1.5 psid* | 3.5 SCFM @ 3.0 psid | -15 | 1.5 psid* | 3.5 SCFM @ 3.0 psid
-20 | 2.0 psid* | 3.0 SCFM @ 3.5 psid | -20 | 2.0 psid* | 3.0 SCFM @ 3.5 psid
-25 | 2.5 psid* | 2.5 SCFM @ 4.0 psid | -25 | 2.5 psid* | 2.5 SCFM @ 4.0 psid
-30 | 3.0 psid* | 2.0 SCFM @ 4.5 psid | -30 | 3.0 psid* | 2.0 SCFM @ 4.5 psid
Materials | Body & Hex Nut-Black Polycarbonate Plastic, Washer-Aluminum Alloy, Humidity Indicator Housing-High Strength Plastic, Gasket-per AMS-R-6855, Class II, Grade 60
Mounting Requirements | Gasket, Washer, Hex Nut are provided with each valve
Maximum Wall Thickness | 0.38 in. (10 mm)
Installation Torque | 30-40in. – lbs. (3.4-4.5 Nm)
Additional Information
Technical Documents
Technical drawing, STEP file, datasheet or product document links were detected from the source page. Please verify the latest revision before ordering.
RFQ Notes
- Original brand and part number should be confirmed during quotation.
- Availability, lead time, and shipping options are confirmed after RFQ review.
- For replacement or equivalent sourcing, include photos, nameplate data, and existing part references.
