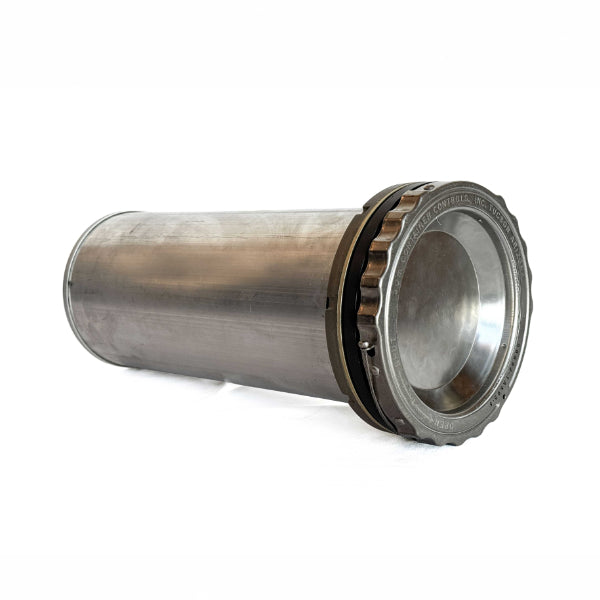

TA585 Records Holders

TA585 Records Holders - Industrial Spare Part RFQ

Brand: AGM Container Controls

Part Number / SKU: TA585

Product Family: Container Access > Records Holders

This AGM Container Controls item is listed on AltraParts for industrial sourcing and RFQ-based procurement. Send your required quantity, delivery country, target lead time, and any technical requirements for quotation review.

Product Information

TA585 Records Holders SKU: TA585 TA585 Records Holders Categories Container Access , Records Holders Description *Minimum inside dimensions of Ø4.8" (122mm) Part Number Length "A" TA585-4 5.00" (127 mm) TA585-7 8.00" (203 mm) TA585-12 13.00" (330 mm) TA585-14 15.00" (381 mm) TA585-17 18.00" (457 mm) Handles larger, bulkier, soft-covered documents. Also tools or other support items. Simple to install in large shipping and storage containers, AGM's TA585 Records Holders provide a convenient, safe and easily accessible place for inspection records and instructions. The lightweight TA585 Records Holders are waterproof and pressure tight up to 2.5 psig. The Records Holder is sealed to the container from the outside by a retained gasket. An O-ring in the spring loaded cover seals the interior of the records compartment from the outside. Designed for mounting on a smooth, flat surface; this item may not seal tightly if surface is curved or domed or too rough. Simple to Use. Roll the records or instructions and insert into tube. Press on cover and turn about 90°. Easily Installed. Install the Records Holder through a 5.52" (140 mm) dia. hole in container wall. Gasket, washer and mounting nut are furnished. Blind threaded insert provided in end of tube for additional support. Tamper-Proof. Holes through cover and flange of records holder are provided for safety wiring and inspector's seal. Materials and Finish: Housing hard anodized, other aluminum alloys conversion coated per MIL-DTL-5541. Stainless steel cover, passivated. Buna-N O-ring and gasket. Torque Value for Spanner Nut : 200 lb. in. (22.50 N•m) TA585 Drawing Additional Information Records Holders Length 4 in (102 mm), 7 in (178 mm), 12 in (305 mm), 14 in (356 mm), 17 in (432 mm) Clear Opening Diameter 4.80 in (122 mm) Mounting Hole Diameter 5.52 in (140 mm) Torque Value for Spanner Nut 200 lb. in. (22.50 N•m) Cable Material Stainless Steel Cover Material Stainless Steel Cover Finish Passivated Body Material Aluminum Alloys Body Finish Hard Anodized (Housing) or Conversion Coated Internal O-Ring Material Silicone External Gasket Material Buna-N Tech Sheets Drawing

Technical Details

Records Holders Length | Choose an option 4 in (102 mm) 7 in (178 mm) 12 in (305 mm) 14 in (356 mm) 17 in (432 mm) Clear
Part Number | Length "A"
TA585-4 | 5.00" (127 mm)
TA585-7 | 8.00" (203 mm)
TA585-12 | 13.00" (330 mm)
TA585-14 | 15.00" (381 mm)
TA585-17 | 18.00" (457 mm)
Records Holders Length | 4 in (102 mm), 7 in (178 mm), 12 in (305 mm), 14 in (356 mm), 17 in (432 mm)
Clear Opening Diameter | 4.80 in (122 mm)
Mounting Hole Diameter | 5.52 in (140 mm)
Torque Value for Spanner Nut | 200 lb. in. (22.50 N•m)
Cable Material | Stainless Steel
Cover Material | Stainless Steel
Cover Finish | Passivated
Body Material | Aluminum Alloys
Body Finish | Hard Anodized (Housing) or Conversion Coated
Internal O-Ring Material | Silicone
External Gasket Material | Buna-N
