GKS-713 206 225 R 3007 - INGUN Industrial Spare Part for RFQ
The GKS-713 206 225 R 3007 is an original INGUN industrial component available through AltraParts for RFQ-based sourcing. Please log in to show the price
Key Features
- Original INGUN product reference for professional industrial applications
- Suitable for electronic testing, fixture systems, PCB test, ICT/FCT, or connector test environments
- RFQ-based sourcing for availability, lead time, and quantity quotation
- International supply support with export and customs documentation assistance
Product Information
| Brand |
INGUN |
| SKU / Part Number |
GKS-713-0002 |
| Series |
GKS 713 |
| Supply Model |
Request for Quote |
| Application |
Industrial test equipment and electronic test components |
Technical Data
| Adjustable installation height |
No |
| Barrel diameter |
2.65 mm [.104 in] |
| Collar height |
07 |
| Compatible connector(s) |
SE-503 |
| Compatible receptacle(s) |
KS-713 |
| Contacting from |
Flat contact , Post , Pin |
| Continuous plunger |
ø1,3 x 10,0 |
| Current load capacity / rated current |
5 A |
| Current rating, connection on plunger |
8 A |
| Grid |
4.5 mm [177 mil] |
| Installation type |
Plug-in |
| Magnetic |
Yes |
| Max. temperature |
80 °C [176 °F] |
| Maximum stroke |
5 mm [.196 in] |
| Min. temperature |
-40 °C [-40 °F] |
| Non-rotating |
No |
| Product group |
Rotating test probes , ICT / FCT (in-circuit test and function test |
| Quick-exchange system |
No |
| RoHS-compliant |
Yes |
| Series |
GKS-713 |

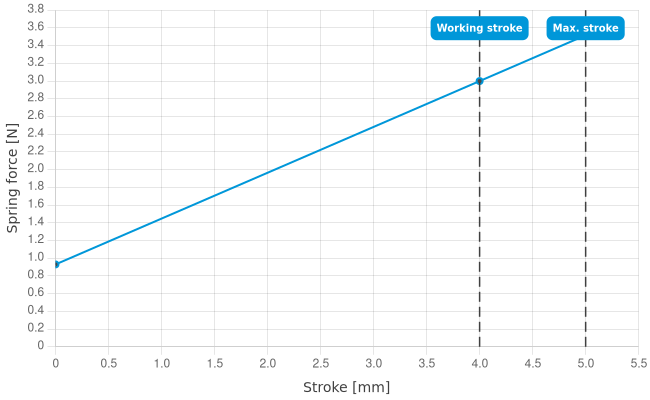

| Spring force at working stroke |
3 N [10.7 ozf] |
| Spring pre-load |
0.93 N [3.34 ozf] |
| Sub-product group |
Rotating test probes |
| Tip diameter |
2.25 mm [.088 in] |
| Tip style |
06 serrated |
| Tip style material |
2 steel |
| Tip style surface |
R rhodium |
| Total length |
45 mm [1.77 in] |
| Type of test probe connection |
Plug |
| Typical resistance (Ri) |
30 mOhm |
| Typical resistance (Ri), connection on plunger |
10 mOhm |
| Working stroke |
4 mm [.157 in] |
Request a Quote
Send us the INGUN part number, required quantity, and delivery country. AltraParts will review availability, lead time, pricing, and shipping options for your RFQ.
