SKS-215 002 180 A 3002 M - INGUN Industrial Spare Part for RFQ
The SKS-215 002 180 A 3002 M is an original INGUN industrial component available through AltraParts for RFQ-based sourcing. For a wide range of applications: performs components detection check, is a switch for detecting closed/open states, and a signal transmitter for process controlVarious collar heights are available on the receptacles to adjust the installation heightThe…
Key Features
- Original INGUN product reference for professional industrial applications
- Suitable for electronic testing, fixture systems, PCB test, ICT/FCT, or connector test environments
- RFQ-based sourcing for availability, lead time, and quantity quotation
- International supply support with export and customs documentation assistance
Product Information
| Brand |
INGUN |
| SKU / Part Number |
SKS-215-0023 |
| Series |
SKS 215 M |
| Supply Model |
Request for Quote |
| Application |
Industrial test equipment and electronic test components |
Technical Data
| Adjustable installation height |
Yes |
| Barrel diameter |
1.65 mm [.064 in] |
| Collar height |
02 |
| Compatible connector(s) |
SE-081 |
| Compatible receptacle(s) |
KS-215 M |
| Contacting from |
Presence check |
| Current load capacity / rated current |
3 A |
| Grid |
2.54 mm [100 mil] |
| Installation type |
Screw-in |
| Magnetic |
Yes |
| Max. temperature |
80 °C [176 °F] |
| Maximum stroke |
5 mm [.196 in] |
| Min. temperature |
-40 °C [-40 °F] |
| Non-rotating |
No |
| Product group |
SKS (screwed-in) , Switching probes |
| Quick-exchange system |
No |
| RoHS-compliant |
Yes |
| Screw-in torque |
3 – 5 cNm [.265 – .442 lbf·in] |
| Screw-in torque max. |
5 cNm [.442 lbf·in] |
| Screw-in torque min. |
3 cNm [.265 lbf·in] |
| Series |
SKS-215 , SKS-215 M plug system, screw-in |
| Spring force at switching point |
0.9 N [3.23 ozf] |
| Spring force at working stroke |
3 N [10.7 ozf] |
| Spring pre-load |
0.5 N [1.79 ozf] |
| Sub-product group |
SKS (screwed-in) |
| Switching point |
8.5 mm [.334 in] |
| Switch path |
1.5 mm [.059 in] |
| Tip diameter |
1.8 mm [.07 in] |

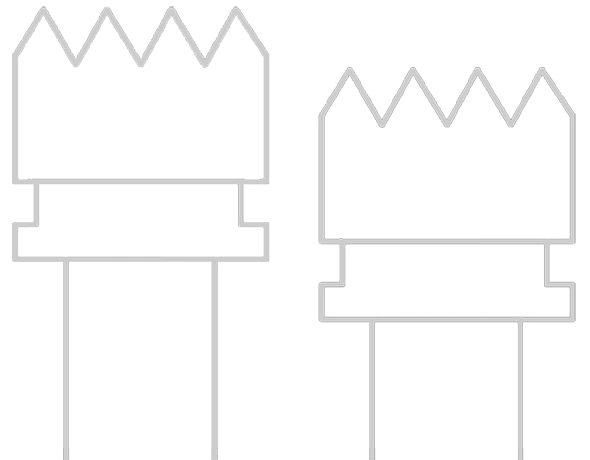

| Tip style |
002 flat, contact surface insulated |
| Tip style material |
0 plastic |
| Tip style surface |
A gold |
| Total length |
46.5 mm [1.83 in] |
| Type of test probe connection |
Plug |
| Working stroke |
4 mm [.157 in] |
Request a Quote
Send us the INGUN part number, required quantity, and delivery country. AltraParts will review availability, lead time, pricing, and shipping options for your RFQ.
